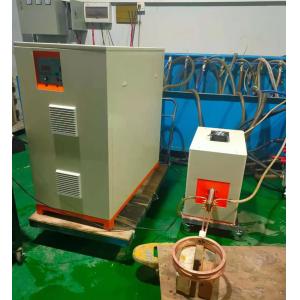

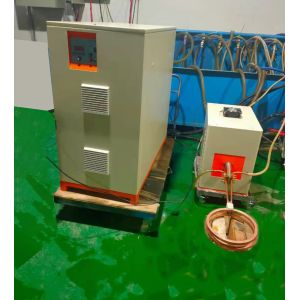

    240A 160KW Ultra High Frequency Induction Heating Machine Quenching Equipment

    Ask Lasest Price
    Brand Name : ORD
    Model Number : UF-160KW
    Certification : CE,SGS,ISO
    Price : USD20000-22000
    Supply Ability : 200SET/Month Goods in Stock
    Delivery Time : 1-2 Work days
    • Product Details
    • Company Profile

    240A 160KW Ultra High Frequency Induction Heating Machine Quenching Equipment

    80-150Khz 160KW Ultrahigh Frequency Induction Heating Machine


    Features:

    1. This equipment adopts the IGBT inverter circuit, which has high load adaptability.
    2. It has such features as high frequency, fast heating speed, high efficiency and easy operation.
    3. As compared with other heating modes, it can significantly promote the economic benefits, improve the quality of heated work pieces and save the energy and material, alleviate labor intensity and improve the production environment
    4. It has super small size, which can save the production space by 10 times
    5. It is safe and reliable, and requires no equipments of ten thousand voltage,and thus can ensure the safe operation
    6. The comprehensive full load design is available for 24-hour continuous operation.
    7. Simple to install, Installation can be done by unprofessional person very easily;
    8.Transformer Ratios can connect different Induction coils,Work different workpiece.

    Specfication:

    TypeUF-160KW
    Work power360-480V *3Phase 50-60hz
    Output power160KW
    Input current240A
    Fluctuating frequency80-150KHZ
    The flow rate of cooling water0.1-0.3Mpa >10L/MIN
    Water temperature protection point40℃
    Duty cycle100%(40degree room temperature)
    Weight160KGS

    100KGS

    Size

    95×53×100CM
    65×34×50CM


    Application:

    (A) heat treatment industry (hardening, annealing, tempering and stress relieving):
    1. Hardware tools high-frequency hardening heat treatment, such as; vise, hammer, locking pliers, wrenches, screwdrivers
    2. Variety of steam, motorcycle parts high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spine shaft, drive axle, each high-frequency hardening heat treatment of the kinds of small shafts, crank pin, rocker arm, rocker shaft.
    3. Hydraulic components, such as: a rotor of the plunger piston pump, rotor pump, various valves on the other to the heat treatment of high-frequency hardening of the shaft, the gear pump gears, etc.

    Advantage:
    1. CE certificated, more than 22 years experiences, high quality control and good performances.
    2. Infineon IGBT type,Can save 20-30% electricity compare SCR parallel type

    3. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine. Will not pollute electricity Net.

    4. Digital type machine, frequency, power, current can shows in the touch screen, easy to control the machine and see the working efficiency.

    5. Water Pressure and water Temperature Meter in the machine.
    6. Adjustable Transformer, more options for you to connect different induction coils. Will be large using for different workpiece.


    240A 160KW Ultra High Frequency Induction Heating Machine Quenching Equipment240A 160KW Ultra High Frequency Induction Heating Machine Quenching Equipment
