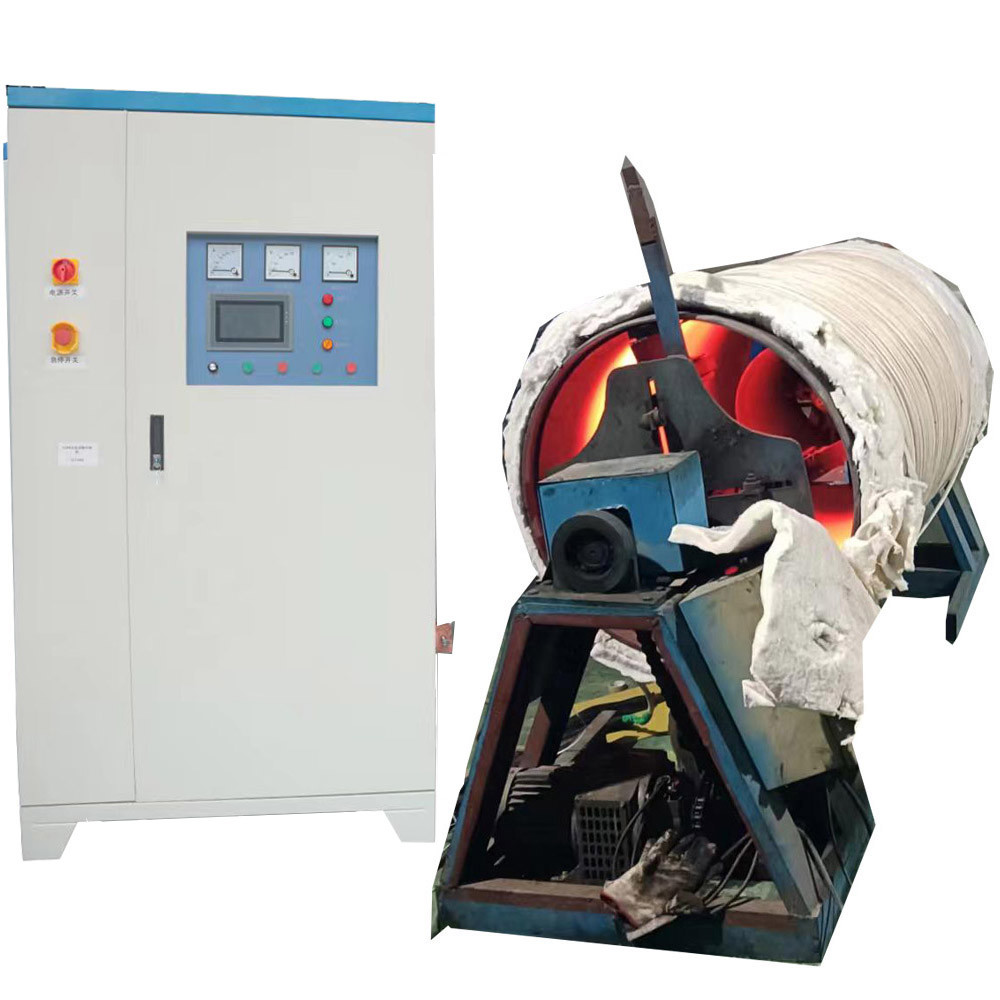

    500KW Digital Medium Frequency Induction Heating Machine 60M Heating Cables Preheat

    Ask Lasest Price
    Brand Name : ORD
    Model Number : DSP-MF-500KW
    Certification : CE. SGS, ISO,TUV
    Price : USD18500-USD28500
    Delivery Time : 10 Work days
    • Product Details
    • Company Profile

    500KW Digital Medium Frequency Induction Heating Machine 60M Heating Cables Preheat

    500KW Digital Medium Frequency Heating Machine 60M Heating Cables Preheat, Heating Shrink and Expansion Machine

    Technical Parameters:

    TypeDSP-500KW
    Rated Output Power500KW
    Rated Output Frequency1-15KHZ
    Input Voltage380-480V 50-60hz
    Protection LevelIP23
    Current750A
    RemoteYes
    Induction Heating Flexible Cables1-100M
    Size800*1000*1800MM
    Weight380KGS
    Protection systemYes
    Heating Temperature1-680C

    Features:

    1. This equipment uses the digital signal processing (DSP) digital real-time high-speed signal processor and DDS (Direct Digital Synthesizer) direct digital frequency synthesizer. Infieneon IGBT type.
    2. Using advanced digital control technology and digital phase-locked loop tracking technology and computer control technology, the system structure is safe and reliable, stable performance and simple operation.
    3. Imported integrated circuit and power module are used to realize automatic frequency tracking. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.
    4. The heating speed is fast and the heating efficiency is high. It can control the heating temperature and time conveniently, and it is easy to ensure the heating quality and the running water operation.
    5. Visual digital display of voltage, current, frequency, power, heating time, and heating temperature,etc.
    6. Can Predictable power, that is the power can be set before heating is turned on, with high accuracy. This function is not available for other similar products in the market.
    7. Friendly man-machine interface:
    Human-computer interaction can choose a variety of ways, such as LED indicator or digital tube display, touch screen display and control, text screen display, customers can choose at will according to their needs; from the function realization and operation settings, it covers the traditional mechanical button panel, making the operation and maintenance easier, more intuitive and more convenient;
    8. Hardware isolation interface:It can be compatible with the existing PLC on the market, and is conducive to the functional transformation of the existing PLC system and the further expansion of the automation system.
    9. Remote communication interface:
    10. The device is equipped with a striking red emergency stop button, which can be pressed quickly when an emergency occurs.Stop the equipment immediately to achieve protection measures.
    11. Reasonable layout of the internal components of the equipment, the main control circuit board is centralized on the weak side to avoid the interference of the strong current to the control circuit and improve the control accuracy.
    12. Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 0% to 100% resolution.

    13. The machine has the Isolation Transfromer, will be very safe operate our machine.


    Application:

    Preheating before welding, hydrogen elimination after welding, stress relief heat treatment, heat jacket heat removal, diathermy, hot forging, etc

    Application Industries: Nuclear power, military, marine, chemical, power construction, vehicles, engineering machinery, pressure vessels, scientific research.


    Advantage:

    1. Easy to operate, can programme

    2. High Waterproof.

    3. Can bear high temperature, allow the max environment temperature reach to 180C.

    4. High safety.

    5. Full digital

    6. Anti-interference.

    Control Function:

    Main wire Switch

    Main Part Switch

    Remote Switch

    System safety Protection

    Phase protection

    Timmer Switch

    Over-heating protection

    Over-voltage protection

    Over-current Protection

    Phase Fail Protection

    Power can programme

    Display function:

    Temperature Checking Display

    Time setting Display

    Working Model Display

    Working state display

    Failure inquire display


    500KW Digital Medium Frequency Induction Heating Machine 60M Heating Cables Preheat
